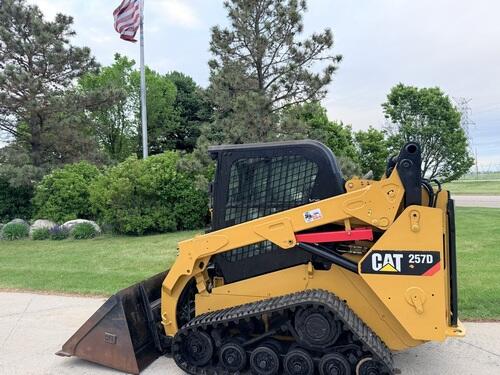

2019 Catepillar 257D Track SkidSteer With Bucket

2-Speed

No Def

Back up Camera

Only 2332 Hrs

Cab Heat/A/C

Radio

Tracks are 90%

Factory Cat 72" Bucket

New Power Hydraulic Tach

Fully inspected and serviced

Pins and bushings are tight

Seasoned Ready

Delivery options as well

Others on Hand

We Take Trades

More Machines

2019 T-770 2100 Hrs $46,999

2014 JCB 260. 850Hrs $39.900

2021 S76 Bobcat 1120 Hrs $49,900

2017 Catepillar 236D 800 Hrs $36,500

2024. Bobcat. S450 122 Hrs $38,900

2002 John Deere 260 900Hrs Sold

1996 Case 1480 4200hrs Sold

FINANCING AVAILABLE AS WELL !!!!!!!!!

Lucas @ Ag Direct

Call 605-222-0205

United Lease & Finance, Inc

Call Roger Johnson 701-232-1827

For a free Consultation Today In House as well.

Pro Kartz now offers skid steer attachments!

H&H Fabrication Authorized Dealer that carries a wide variety of Skid steer products

10% Off any attachments with purchase of Skidsteer

Snow Buckets on Hand Starting at $1295

Pallet Forks -$1295

Receiver Hitches $595

Bale Spears $915/$850

Seasoned Ready

Delivery options as well

Pro Kartz

1100 Industrial Drive Suite 40

Bismarck, ND 58501

Wade 701-220-8063

Specs listed below:

ENGINE POWER HP 73

Starting 2019 Model Year

OPERATING LOAD LBS. (KG) 2,800 (1,270)

Starting 2016 Model Year

OPERATING WIDTH IN. (CM) 68 (168)

Starting 2019 Model Year

Rated Operating Capacity LBS (KG) 35% 1,960 (889)

Starting 2020 Model Year

Rated Operating Capacity LBS (KG) 50% 1,960 (889)

Starting 2019 Model Year

Air Conditioning System

Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.

Cab

FOPS ISO 3449:2005 Level I

FOPS Level II ISO 3449:2005 Level II

ROPS ISO 3471:2008

Dimensions

Bucket Pin Height - Carry Position 9 in (22 cm)

Bucket Pin Height - Maximum Lift 10 ft (3 m)

Bucket Pin Reach - Maximum Lift 15 in (37 cm)

Clearance at Maximum Lift and Dump 91 in (230 cm)

Departure Angle 35 degrees

Ground Clearance 1 ft (0 m)

Height - Top of Cab 7 ft (2 m)

Length - Track on Ground 59 in (150 cm)

Length - With Bucket on Ground 137 in (349 cm)

Length - Without Bucket 109 in (277 cm)

Maximum Dump Angle 52 degrees

Maximum Overall Height 155 in (393 cm)

Maximum Reach - With Arms Parallel to Ground 53 in (133 cm)

Overall Length - Track 75 in (190 cm)

Rack Back Angle - Maximum Height 87 degrees

Reach - Maximum Lift/Dump 25 in (64 cm)

Turning Radius from Center - Bucket 86 in (219 cm)

Turning Radius from Center - Coupler 55 in (140 cm)

Turning Radius from Center - Machine Rear 61 in (155 cm)

Vehicle Width 66 in (168 cm)

Engine

Bore 4 in (9 cm)

Displacement 203 cu in (3,327 cu cm)

Engine Model Cat C3.3B DIT (turbo)

Gross Power - SAE J1995 74 hp (55 kw)

Net Power 73 hp (55 kw)

Net Power - ISO 9249 74 hp (55 kw)

Net Power - SAE 1349 73 hp (55 kw)

Peak Torque - 1,500 rpm - SAE J1995 195 ft (59 m)

Stroke 5 in (12 cm)

Hydraulic System

Hydraulic Flow - High Flow - Hydraulic Power (Calculated) 58 hp (43 kw)

Hydraulic Flow - Standard - Hydraulic Power (Calculated) 39 hp (29 kw)

Hydraulic Flow - Standard - Loader Hydraulic Flow 20 gpm (76 lpm)

Hydraulic Flow - Standard - Loader Hydraulic Pressure 3335 psi

Loader

Operating Load Rating 1,960 lbs (889 kg)

Operating Width 66 in (168 cm)

Noise Level

Inside Cab* 83 dB(A)

Note (1) Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.

Note (3) ***The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.

Outside Cab** 103 dB(A)

Operating Specifications

Breakout Force - Tilt Cylinder 5,035 lbs (2,284 kg)

Ground Contact Area 1,770 cu in (29,005 cu cm)

Ground Pressure 4.5 psi

Rated Operating Capacities - 35% Tipping Load 1,960 lbs (889 kg)

Rated Operating Capacities - 50% Tipping Load 2,800 lbs (1,270 kg)

Rated Operating Capacity with Optional Counterweight 3,000 lbs (1,361 kg)

Tipping Load 5,600 lbs (2,540 kg)

Power Train

Travel Speed - Forward or Reverse - Two Speed 14 mph (10 kph)

Service Refill Capacities

Cooling System 4 gal (14 l)

Engine Crankcase 3 gal (11 l)

Fuel Tank 28 gal (105 l)

Hydraulic System 13 gal (50 l)

Hydraulic Tank 10 gal (39 l)
